Viewpoint: E - Infrastructure

Viewpoint: E - Infrastructure ()

Viewpoint: E - Infrastructure

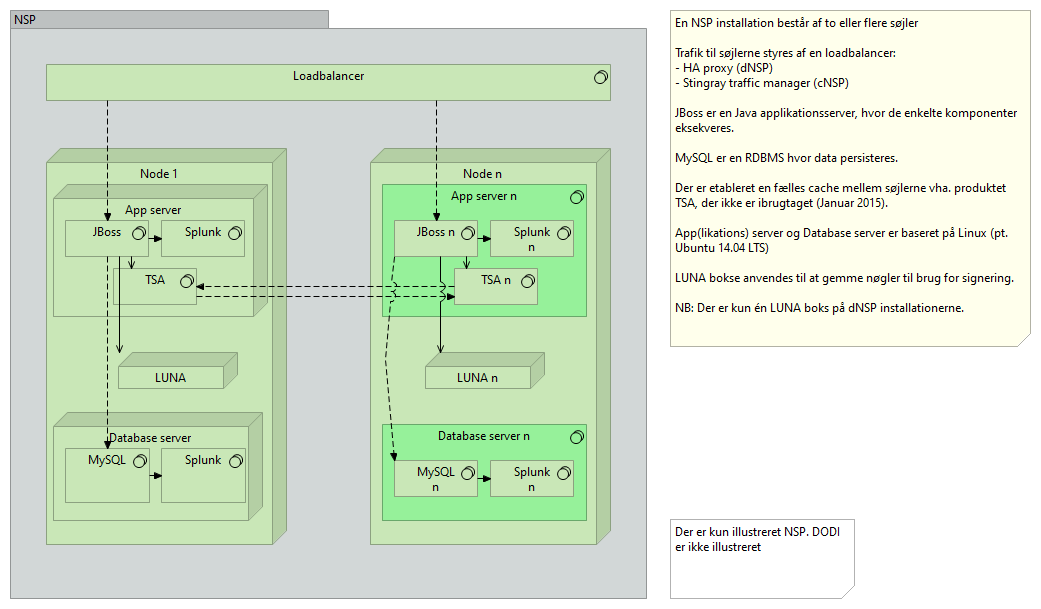

NSP
Node 1
LUNA
App server
JBoss
Splunk
TSA
Database server
MySQL
Splunk
Loadbalancer
Node n
App server n
JBoss n
Splunk n
TSA n
Database server n
Splunk n
MySQL n
LUNA n


		Node 1	App server
		Node 1	Database server
		App server	JBoss
		App server	Splunk
		App server	TSA
		JBoss	Splunk
		JBoss	TSA
		JBoss	LUNA
		JBoss	MySQL
		TSA	TSA n
		Database server	MySQL
		Database server	Splunk
		MySQL	Splunk
		Loadbalancer	JBoss
		Loadbalancer	JBoss n
		JBoss n	Splunk n
		JBoss n	MySQL n
		JBoss n	TSA n
		JBoss n	LUNA n
		TSA n	TSA
		MySQL n	Splunk n
